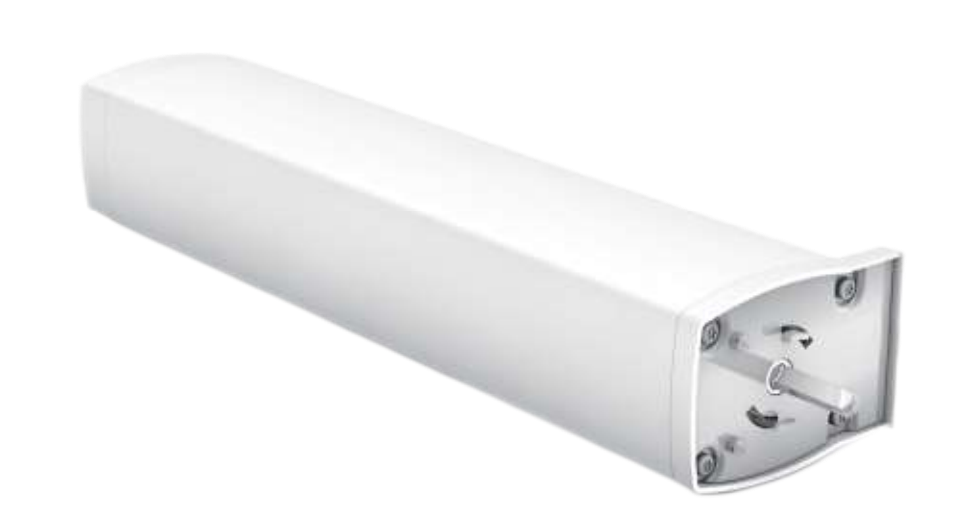

Curtain motor

This system enables intelligent control and automated management of blinds, blackout curtains, and sunshades. It automatically adjusts the opening and closing status of blinds or sunshades based on pre-set schedules or data from light or temperature sensors, thus achieving automated regulation of shade and light.

Description

  • This curtain motor is an AC-powered motor suitable for electric curtain systems ranging from 0.9 to 12 meters in length. It can be controlled via an app, automation system, or smart speaker, and can be connected to other Galaxy smart devices to enable smart application scenarios.
  • Technical Standards





     Product Name



    Curtain motor



     Product model

    616001-616008




     Electrical parameters

    Rated voltage 220V~, Rated power 107W, Rated current 0.47A


     Dimensions

    305*40*40 mm




     Contact methods

    Zigbee




     Rated torque

    1.2 Nm
    Running speed 18 cm/second



    Press and hold the grid configuration button for more than 5 seconds until the left indicator light flashes rapidly; this indicates you have entered grid configuration mode. Configure the curtain motor in the app by following the instructions provided. Product features: Automatically adjusts limit switches; stops when encountering an obstacle; can be manually operated during a power outage; automatically starts when powered on.

    • Electronic Travel Record
    • Stop when faced with obstacles
    • Inverse function
    • Manual border adjustment function
    • Station Three
    • Low voltage switch selection function
    • Manual start, gentle opening and closing, prevents fabric crushing.
